A bus shelter replacement program has to coordinate stop surveys, passenger access, structural design, supplier scope, production and phased installation across many locations. A catalogue model can help buyers compare appearance, but it cannot define foundations, environmental loads, accessibility clearances or site responsibilities. For procurement teams, clear bus shelter design requirements make proposals easier to compare because every supplier responds to the same stop schedule and deliverables.
This guide explains the decisions that should be settled before a municipal tender or request for quotation is issued. It is written for transit authorities, municipal contractors, architects, developers and procurement teams. Local building, accessibility, electrical and road-safety rules always take priority. Where a requirement depends on wind, snow, seismic or foundation conditions, the final value should be confirmed by the project engineer rather than copied from a generic catalogue.
Preparing an RFQ now? Use this guide as a design and supplier-comparison checklist, then review Yubang Outdoor’s custom bus shelter product options for configurable structure, panels, seating, signage and lighting. Buyers can send the platform drawing, quantity, project location and required functions through the project inquiry page for a scope review.
Replacing existing shelters? Use the bus shelter replacement program checklist to organize stop surveys, supplier comparisons and phased installation.

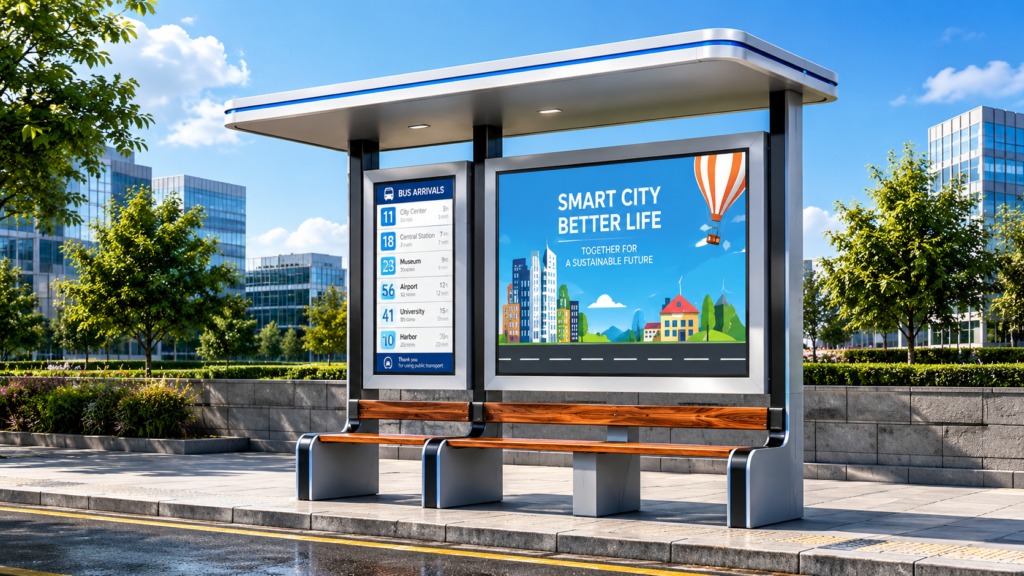

Bus Shelter Replacement Program and Design Standards
Bus shelter design standards are not one universal set of dimensions or materials. The applicable requirements come from the project location, transport authority, accessibility rules, structural design criteria, electrical scope and road-safety review. A useful tender therefore identifies the governing local requirements and gives suppliers the site information needed to prepare a compliant shelter proposal. It should not copy wind loads, clearances or foundation details from an unrelated city.
| Design area | Information the buyer should define | Information the supplier should submit |
|---|---|---|
| Site and layout | Platform plan, curb, walking route, utilities, boarding area and nearby obstacles | Overall shelter layout, column positions, roof overhang and clear internal space |
| Accessibility | Applicable local accessibility rules and required passenger movement areas | Seating layout, wheelchair space and dimensions that show the route remains clear |
| Structure | Project location, governing code and environmental design criteria | Frame, connections, base plates, anchors and calculations when the tender requires them |
| Panels and roof | Visibility, weather protection, safety, impact and maintenance priorities | Panel material, finished size, edge protection, retention, joints, drainage and replacement method |
| Information and advertising | Required route information, artwork owner, illumination and update frequency | Visible openings, access doors, lighting, cable routing and service clearances |
| Installation | Foundation responsibility, site access, lifting limits and permitted working method | Setting-out drawing, anchor template, assembly sequence, packing list and installation instructions |
Show the Required Bus Shelter Dimensions on Drawings
A bus shelter dimension schedule should show the overall length, overall depth, maximum height, roof overhang, column centerlines, base-plate positions and the usable protected area. It should also identify the distance from the curb, the open boarding side, seating depth, wheelchair space and the clear path around the shelter. Advertising and information panels need their own frame-opening and visible-artwork dimensions. These values should be taken from the approved site plan and local requirements rather than from a generic product image.
Separate Buyer Criteria from Supplier Design Work
The buyer should define the location, operating needs, applicable rules, required functions and approval documents. The shelter supplier can then develop the frame, panel, roof and fixing proposal around those inputs. The project engineer or responsible authority should confirm site-specific structural criteria and foundation design. Stating this division of responsibility in the RFQ reduces gaps between the shelter drawing, civil work and installation package.
1. Define the Transit Shelter Project Before Choosing a Model
A catalogue image can show the appearance of a shelter, but it cannot define the project. A usable brief starts with the stop location, expected users, available platform and the equipment that must fit inside the structure. This information determines whether a standard module is suitable or whether a custom transit shelter design is needed.
Confirm the Stop Location and Operating Environment
Record whether the site is on a city road, campus, industrial park, residential district or scenic route. Note the direction of traffic, the curb position, nearby trees and utilities, and the way passengers approach the stop. Coastal air, heavy rain, strong sun, snow and wind-blown dust affect material and enclosure choices. A sheltered urban street and an exposed roadside stop should not automatically use the same specification.
Estimate Passenger Demand Without Blocking Movement
Passenger volume affects shelter length, seating capacity and the amount of standing space. The layout also needs a continuous path for people walking past the stop. Busy stops may benefit from multiple shelter bays or a longer modular system, while a low-volume stop may need only a compact roof and leaning rail. The goal is not to fit the largest structure possible; it is to organize waiting, boarding and circulation safely within the available platform.
2. Set Clear Bus Shelter Dimensions and Layout
Transit shelter specifications should show overall length, width and height as well as the usable space inside. Drawings should identify columns, roof overhang, side panels, seating, route boards and any advertising area. The buyer should also define which dimensions are fixed and which may be adjusted during shop-drawing review.
Protect the Boarding Zone and Sight Lines
The shelter should not obstruct the driver’s view of waiting passengers or the passenger’s view of an approaching vehicle. Columns, opaque panels and advertising displays need to be placed with those sight lines in mind. The front of the shelter normally remains open toward the boarding area, but the exact opening and setback depend on the platform and local transit rules.
Allow Space for Seating, Wheelchairs and Standing Passengers
Seating should not consume the full protected area. The plan needs clear space for wheelchair users, passengers with luggage and people who prefer to stand. Seat height, armrests and leaning rails can be selected according to the user group and local accessibility requirements. The tender should state whether the bench is integrated into the shelter frame or supplied as a replaceable component.
3. Specify Structural Performance, Not Just Frame Size
Tube dimensions alone do not prove that a shelter is suitable. Structural performance depends on the complete system: columns, beams, roof, connections, base plates, anchors and foundation. A responsible bus shelter manufacturer should receive the project location and design criteria before finalizing member sizes.
Use Project-Specific Wind, Snow and Seismic Criteria
The procurement document should identify the governing code or ask the supplier to design to criteria provided by the project engineer. Do not insert an assumed wind or snow value simply because it appears in another project’s drawing. Terrain, building exposure, altitude and local code editions can change the required calculation. If stamped calculations are required, state the acceptable engineer qualification and submission format in the tender.
Review Connections, Base Plates and Anchors as One System
Welded and bolted joints should be accessible for fabrication inspection and future maintenance. Base plates need sufficient clearance for anchor installation and drainage around the column. Anchor type and embedment depend on the foundation design. Ask the supplier to identify all site-installed bolts and to provide a clear fixing schedule rather than leaving the installer to infer connection details.
4. Design the Roof for Weather Protection and Drainage
A shelter roof has to cover the waiting area without directing water onto the boarding path. Roof depth, slope, panel joints and edge details all affect performance. The roof material may be metal sheet, polycarbonate, laminated glass or another project-approved panel, but the complete assembly should be evaluated for drainage, impact risk, heat, light and maintenance.
Control Rainwater at the Roof Edge
The shop drawing should show the direction of roof fall and the location of gutters or discharge points. Water should not collect around base plates or flow across an accessible route. In climates with frequent heavy rain, hidden drainage can create maintenance problems if it cannot be cleaned. An exposed and serviceable drainage path is often easier for municipal teams to inspect.
Balance Shade, Daylight and Panel Replacement
Transparent roofs admit daylight but may increase heat and show dirt. Opaque roofs provide shade but can make the waiting area darker. Panel size also matters: a damaged roof section should be replaceable without dismantling the whole frame. Buyers should ask how panels are retained, how joints are sealed and whether replacement pieces can be produced later.
5. Choose Materials for the Actual Maintenance Environment
Common frame options include carbon steel, galvanized steel, aluminum and stainless steel. None is automatically best for every project. The practical choice depends on structure size, corrosion exposure, finish expectations, repair capability and budget. The specification should describe the material grade and finish system instead of using broad phrases such as “weatherproof metal.”
Match the Frame and Finish to Corrosion Risk
Painted or powder-coated steel can provide a durable finish when surface preparation and coating details are controlled. Galvanizing may be selected when corrosion protection is the main concern, while aluminum and stainless steel can suit projects that prioritize lower routine coating maintenance. Dissimilar metals, cut edges, drainage traps and fasteners still require attention. Our materials and surface treatment guide explains the available finish considerations in more detail.
Define Glass and Side-Panel Safety Requirements
Side and rear panels may use safety glass, polycarbonate, perforated metal or open framing. Transparent panels improve visibility, but their edges, supports and replacement method must be shown. The project team should confirm the required safety glazing standard and whether anti-graffiti film, bird-visibility markings or privacy treatment is needed. Panel fixings should allow controlled removal by maintenance staff.
6. Use a Bus Shelter Panel Specification Checklist
Panel requirements are often left as a material name on an early drawing, but that is not enough for procurement. A useful specification identifies where each panel is installed, its finished size, visible edge treatment, support method, graphics area and replacement access. It should also state which party confirms the applicable safety, impact and fire requirements. This approach lets buyers compare complete panel systems rather than receiving quotations based on different assumptions.
| Panel Area | Specification to Confirm | Practical Review Question |
|---|---|---|
| Rear screen | Material, finished dimensions, transparency, edge protection and fixing method | Can maintenance staff remove one damaged panel without dismantling the shelter frame? |
| Side screen | Weather coverage, passenger visibility, clearance from the curb and lower-edge protection | Does the panel protect waiting passengers without hiding them from an approaching driver? |
| Roof panel | Material, support spacing, joint treatment, drainage direction and replacement sequence | Will water leave the roof without draining across the boarding or accessible route? |
| Advertising panel | Visible artwork area, frame opening, illumination, cable route, access door and ventilation | Can printed or illuminated content be changed without disturbing route information? |
| Information panel | Readable area, mounting position, weather seal, lighting and update access | Can passengers read essential stop information from the normal approach and waiting position? |
| Solid or perforated infill | Material grade, finish, perforation or joint pattern, drainage and fastener access | Are edges, joints and fasteners protected from corrosion and routine tampering? |
Define Creative Specifications for Bus Shelter Advertising Panels
Creative specifications for bus shelter panels should be separated from the panel construction specification. The advertising owner or media operator normally defines the final artwork size, visible area, bleed, color profile, file format and image-resolution requirement for its production workflow. The shelter drawing should show the physical frame opening, masked edges, poster or display access, illumination arrangement and any ventilation or cable space. Buyers should request the current artwork template from the responsible advertising operator instead of assuming that one city’s poster format will fit another shelter system.
The tender should also state who supplies printed graphics, who approves artwork and how often content will be changed. Route information must remain distinguishable from commercial advertising. If an illuminated panel is included, the electrical load, isolating method, access door and maintenance clearance should be coordinated with the shelter’s wider electrical plan before fabrication.
Plan Vandal-Resistant Details Without Blocking Maintenance
Vandal-resistant bus shelters rely on a coordinated set of details rather than one material claim. Buyers can ask for concealed or tamper-resistant fixings where appropriate, protected panel edges, replaceable modules and access doors that authorized staff can still service. Graffiti removal, scratched glazing, damaged lighting and loose hardware should be considered during design review. The specification should balance resistance to casual damage with safe disassembly for cleaning and repair.
7. Plan Accessibility, Lighting and Passenger Information Together
Accessibility cannot be added after the frame layout is fixed. Clear routes, boarding positions, seating, signs and lighting affect one another. The municipal bus shelter plan should be reviewed as part of the complete stop, including the curb, pavement, tactile guidance and nearby street furniture.
Keep Route Information Visible and Maintainable
Route maps and stop identifiers should be readable from the passenger approach and waiting zone. Printed boards, illuminated light boxes and digital displays have different power and service needs. The drawing should show display size, mounting height, access door direction and cable route. If advertising is included, route information should remain easy to distinguish.
Coordinate Electrical and Solar Options Early
Lighting, USB charging, digital displays and illuminated advertising require an electrical plan. The buyer should confirm whether grid power is available and who will provide the final connection. Solar lighting can reduce trenching in suitable locations, but panel orientation, shading, battery access and expected loads must be reviewed before the roof is finalized. For a real application reference, see the solar smart bus shelter project.
8. Include Installation Information in the Procurement Package
Many delays happen because the shelter and foundation are designed separately. The supplier may know the base-plate geometry, while the local contractor controls excavation, reinforcement and concrete. A coordinated submission schedule keeps those tasks connected.
Require Foundation and Setting-Out Drawings
The shelter supplier should provide column centerlines, base-plate dimensions, anchor positions and design reactions or loads needed by the project engineer. The engineer can then design the foundation for local soil and pavement conditions. Before concrete is poured, installers should check the anchor template against the latest approved shelter drawing.
Plan Packaging and Assembly for Export Projects
Long profiles, coated parts, glass panels and electrical components require different protection. The packing list should identify each assembly and its related hardware. Labels should match the installation drawings. If the shelter ships in modules, the buyer should confirm the largest package size, lifting method and whether site welding is permitted. Clear assembly instructions reduce finish damage and improvised drilling on site.
9. Design for Inspection, Cleaning and Component Replacement
Whole-life maintenance is easier when common failure points are accessible. Lighting drivers, batteries, display doors, glass retainers and drainage channels should be reachable without removing structural members. The buyer can also ask which parts are standard and which require custom fabrication. A component schedule with part numbers is more useful than a general statement that spare parts are available.
Cleaning access deserves equal attention. Narrow gaps collect litter, sealed cavities can trap water and horizontal ledges attract dust. A good design reduces those traps and allows routine cleaning from the platform. Where vandalism is a concern, fasteners and access panels can be selected to discourage casual tampering while remaining serviceable by authorized staff.
10. Use a Complete Municipal Bus Shelter RFQ Checklist
| RFQ Item | Information to Provide | Reason for Including It |
|---|---|---|
| Site and layout | Location, platform drawing, curb, clear path and utilities | Prevents a shelter that conflicts with circulation or services. |
| Dimensions | Overall envelope, protected area and modular limits | Makes supplier proposals directly comparable. |
| Design criteria | Applicable codes and project-specific environmental loads | Connects member sizing to the real location. |
| Materials | Frame grade, panel type, fasteners and finish system | Defines durability and appearance expectations. |
| Passenger facilities | Seating, leaning rails, route boards and accessibility needs | Coordinates the waiting area as one system. |
| Electrical options | Lighting, displays, charging, grid power or solar power | Allows cables, access doors and equipment space to be designed early. |
| Installation | Foundation responsibility, anchor plan and assembly method | Reduces site changes and setting-out errors. |
| Documentation | Shop drawings, calculations if required, packing list and manuals | Sets a clear approval and handover scope. |
11. Compare Supplier Proposals on the Same Basis
A low quotation may exclude foundations, glazing, lighting, freight protection or engineering documents. Before comparing prices, normalize each proposal against the RFQ. Confirm the material and finish, the number of panels, the electrical scope, the drawing package, the packaging method and the warranty terms. Record every exclusion in writing. This process is more reliable than comparing only shelter length and unit price.
Yubang Outdoor’s custom bus shelters for urban transit stations can be configured around project dimensions, structure, panels, seating, signage and lighting. Buyers planning a wider streetscape package can also review our bus shelter and transit stop solutions. These pages help define the product scope before drawings and quotations are prepared.
12. Plan a Bus Shelter Replacement Program
A bus shelter replacement program needs a stop-by-stop scope before a supplier can offer a useful quotation. Record what is being removed, what may remain and what must change at each location. A replacement that resembles the old shelter can still have different column spacing, roof loads, panel connections or electrical requirements. Treat an existing foundation or anchor layout as information to investigate, not as automatic approval for reuse.
Create a Survey Record for Every Stop
Give each stop a unique reference and connect its photographs, measured layout and proposed shelter type to that reference. Record the curb, boarding area, pedestrian route, nearby utilities, existing fixings and maintenance access. Include an overall view and detail photographs of interfaces that may affect removal or installation. If an existing drawing is available, identify its revision and note where the measured site differs.
Separate observations from decisions. A photograph may show a damaged panel or exposed fixing, but it cannot establish the remaining capacity of a foundation. The responsible local engineer or contractor should identify what investigation is needed and confirm which existing elements can remain. This distinction helps suppliers avoid pricing a replacement around unverified assumptions.
Compare Replacement Options on a Shared Scope
| Scope option | Information to confirm | Quotation boundary to record |
|---|---|---|
| Replace panels or passenger fittings | Existing frame condition, measured interfaces, panel retention and access for removal | Which components, fixings and installation instructions are included |
| Replace the shelter on an existing base | Engineer-reviewed foundation suitability, anchor layout, design reactions and finished levels | Responsibility for investigation, anchor changes and any remedial work |
| Replace the complete shelter and foundation | Approved layout, ground information, utility coordination and foundation design | Removal, civil work, supply, assembly, lifting and electrical connection |
| Replace several stops in phases | Stop schedule, shelter variants, access windows, storage space and delivery sequence | Packaging by stop, shipment batches, installation support and handover records |
Choose a Replacement Program Supplier
When evaluating a bus shelter replacement program supplier, ask for a response to the same stop schedule and requirement list. The proposal should identify the shelter configuration for each location, drawing submissions, material and finish details, panel replacement method and exclusions. A single catalogue price gives little basis for comparison when one proposal includes glazing and installation hardware while another does not.
Yubang Outdoor’s 2026 bus shelter catalogue lists custom dimensions, steel frames and columns, tempered glass, acrylic or polycarbonate panel options, and project-selected surface finishes. It also describes laser cutting, bending, welding, weld grinding, layered protective packing and shipment planning against the confirmed drawings, quantity and destination. These statements define available capability areas, not the final specification for every shelter. The written quotation and approved drawings must identify the exact materials, equipment, finish, packing and delivery scope included in an order.
Request an interface review before approving production. The supplier should explain how the proposed frame, base plates, panels, seating and information displays connect, and what information is still required from the project team. Ask how future replacement parts will be identified, including the drawing revision, panel dimensions, finish reference and hardware specification. Confirm availability, warranty terms and lead times in the written offer; do not assume that one supplier’s standard service covers every replacement project.
Use One Approved Stop as the Reference
For a repeated shelter type, consider reviewing one representative installation or assembled sample before releasing the remaining batch. Agree in advance what the review covers: drawing dimensions, panel access, roof drainage, appearance, equipment access and the interface with the site. Record accepted changes in the controlled drawing set so later units follow the same approved configuration. A sample review does not replace any project-specific engineering or local inspection requirement.
Plan Phased Delivery and Site Handover
Organize packing lists and component labels around stop references and installation batches. Tell the supplier about delivery access, unloading equipment and available storage before packaging is finalized. The transit operator and local contractor should coordinate temporary boarding arrangements, removal work and permitted working periods. Put these responsibilities in the project schedule so shelter delivery and civil work do not rely on different assumptions.
At handover, connect each installed unit to its final drawing revision, finish reference, component list, maintenance instructions and agreed inspection records. Keep unresolved items in a named action list with an owner and due date. This creates a usable maintenance record for the next panel repair or shelter replacement instead of leaving the operator with an unlabelled collection of spare parts.
Preparing a replacement tender? Send the stop schedule, existing-site photographs, target quantities and proposed replacement scope through Yubang Outdoor’s project inquiry page. Compare the custom transit shelter options and bus shelter materials guide while defining the final specification.
13. Related Bus Shelter Selection Resources
- Bus shelter types and layout selection guide – compare open, enclosed, modular and solar-ready layouts.
- Bus shelter materials guide – review steel, aluminum, glass and polycarbonate considerations.
- Urban transit station shelter project – see a related application example.
- Send bus shelter project requirements – include drawings, quantity, location and target schedule.
14. Bus Shelter Design Requirements FAQ
What information is needed for a custom transit shelter design?
The supplier needs a site or platform drawing, target shelter dimensions, passenger facilities, project location, material preference and required electrical features. Environmental design criteria and foundation information should come from the project team or local engineer. Yubang Outdoor can use these inputs to prepare a project-specific shelter configuration and shop-drawing scope.
What is the best material for a municipal bus shelter?
There is no single best material for every site. Coated steel, galvanized steel, aluminum and stainless steel each suit different structural, corrosion, finish and maintenance priorities. Compare the complete material-and-finish system and confirm that fasteners, joints and drainage details are compatible with it.
How should transit shelter specifications address wind load?
The specification should name the governing code and provide project-specific design criteria from the responsible engineer or authority. The supplier can then size the frame, connections, base plates and anchors around those inputs. Avoid copying a value from another city because exposure and code requirements can differ.
Can a bus shelter include lighting, advertising and solar power?
Yes, but these options should be coordinated before the roof and frame are approved. Displays need mounting and maintenance access, while lighting and charging need a defined electrical load and cable route. For solar systems, shading, panel orientation and battery service access should be checked at the site.
What drawings should a bus shelter manufacturer provide?
A practical submittal normally includes overall dimensions, frame and panel layouts, base plates, anchor positions, roof drainage, electrical routing when applicable and assembly details. Project-specific calculations or foundation data should be listed separately if the tender requires them. Yubang Outdoor also coordinates packing lists and installation documentation for project delivery.
What should a bus shelter replacement RFQ include?
Include a stop schedule, measured site layouts, photographs of existing structures and fixings, proposed replacement scope, quantities and required installation sequence. State who is responsible for removal, foundation assessment, civil work and electrical connections. Existing foundations and anchors require project-specific review before reuse; ask the supplier to list assumptions and exclusions against the same scope.
